VisiRing
Precise & compact ring Light That Transforms Your Industrial Vision
VisiRing

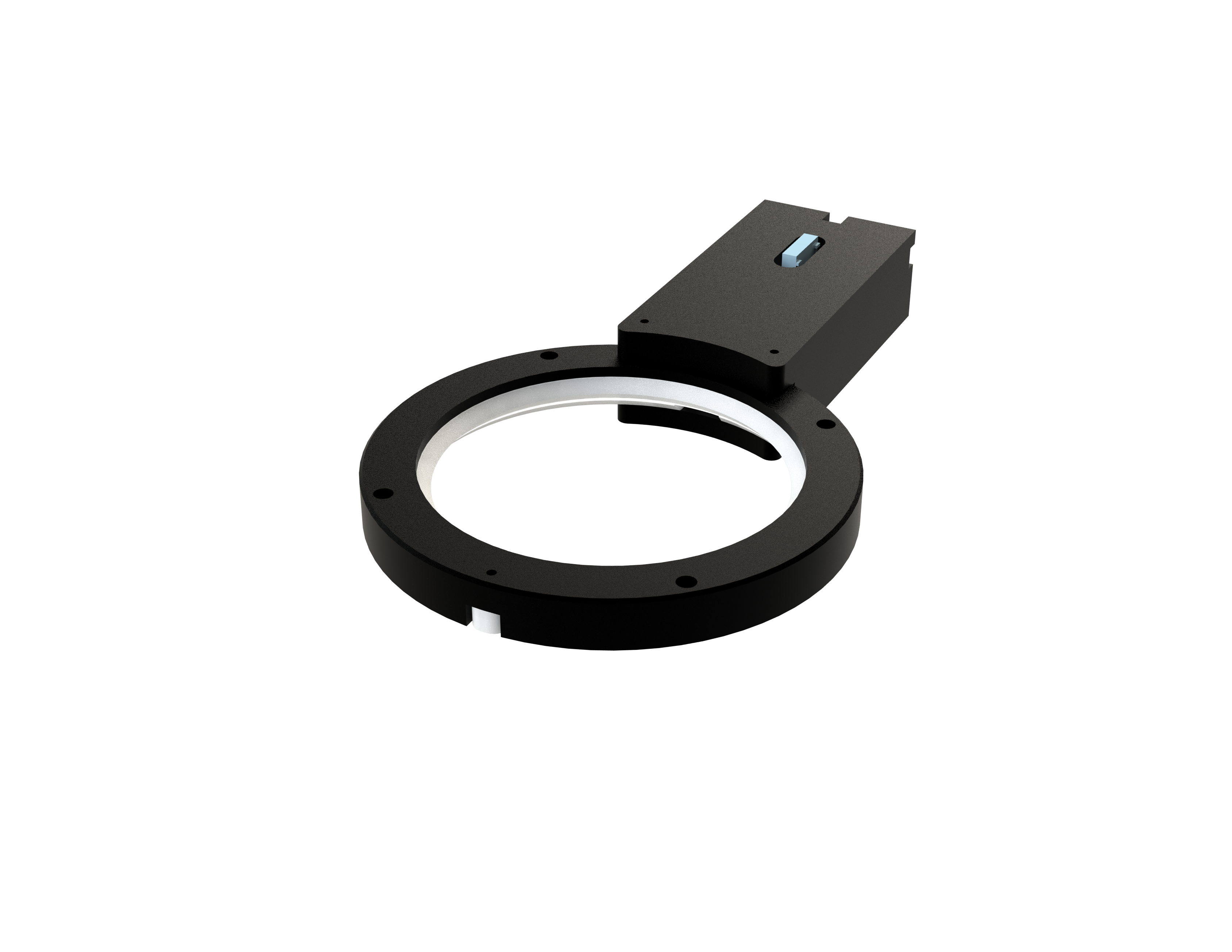

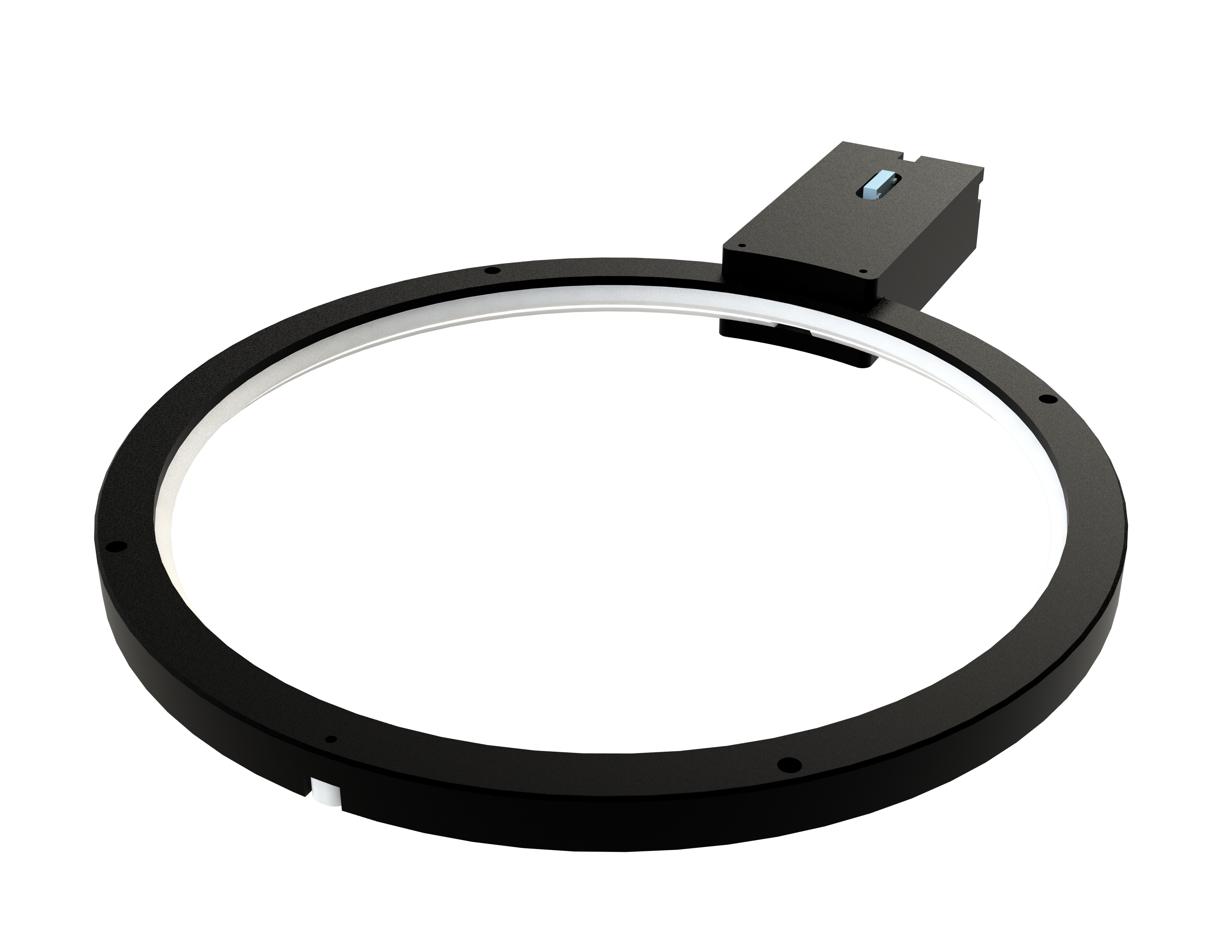

VisiRing White 5400°K
VisiRing is an innovative industrial lighting system integrating exclusive LuxiBright® technology. Providing directional, precise, and uniform illumination, VisiRing enhances the detection of the finest details in your industrial components. Designed without unnecessary components, it eliminates glare and stray light, significantly improving the performance of your machine vision cameras. Available as a complete Lab Kit for testing or as individual components. Please refer to the price list in the PDF below.
From: $ 1'370.00
Are you an integrator? Or do you want to try our Lab Kit? Contact our team here:
Discover VisiRing, the next-generation industrial lighting system designed to meet the most demanding requirements of machine vision. Equipped with exclusive LuxiBright® technology, VisiRing delivers perfectly directional, precise, and uniform illumination. Its unique design eliminates glare and stray light that can interfere with visual inspections, ensuring optimal detection of even the most intricate details of your components.
Unlike traditional LED lighting, VisiRing is engineered with fewer components for maximum efficiency. Its innovative structure focuses light exactly where it is needed, without dispersion or glare, allowing your industrial cameras to capture images with exceptional sharpness and precision.
Whether you want to explore this technology with the complete Lab Kit or selectively integrate the components best suited to your needs, VisiRing adapts to all industrial configurations.
Shipping: 2 to 4 weeks. The expected shipping date confirmation will be sent via email.
Additional information
| Radius Ring | 76mm, 160mm |
|---|---|
| Angle | 20°, 45° |
| Controller | Included |
| Size L.E.S.S. Cable | 1m, 2m |
| Size M12 cable | 1.5m |
| Color temperature | 5400°K |
| Diameter and fixing holes | 160mm, 76mm |
| Overdrive | x2,5 |
| Stroboscope responsiveness | <10 microseconds |
| Beleuchtungsmodus | Continuous / Trigger / Strobe |
| Mechanical Interface | DIN Rail Adaptor |
| Max. Energy Consumption | 19W (Overdrive), 12W (Nominal) |
| Electrical Interface | 24 VDC / GND / Trig In |
| Frame material | Aluminium |
| Mounting holes | M4 |
| Operating temperature | 0-40°C |
| IP Protection Index | IP30 |
| Weight | 200g |
| Lighting technology | LuxiBright® |
| Input Voltage | 24 VDC |
| Output Power | 30W max |
Resources
Technical Datasheet
To learn more about our product, you can download the VisiRing technical datasheet.
3D-CAD
Click here to download the 3D-CAD files of the controller: 3D-CAD controller.
2D PDF Drawing
Click here to download the 2D drawings of the Controller
Top Innovation 2025 Winner with
To learn more about our product, you can download the VisiRing technical datasheet.
Lighting
Comparison
Our expertise makes all the difference with LuxiBright™, a technology that provides uniform and directional lighting, ensuring optimal precision and unmatched defect detection, regardless of the application field.
LED
Scattered
Diffused
LuxiBright™
Uniform
Directional
