LuxiRing
Next-gen Machine Vision Lighting
Machine Vision Lighting
LuxiRing White 5400°K
LuxiRing is an innovative industrial lighting system integrating exclusive LuxiBright® technology. Providing directional, precise, and uniform illumination, LuxiRing enhances the detection of the finest details in your industrial components. Designed without unnecessary components, it eliminates glare and stray light, significantly improving the performance of your machine vision cameras. Available as a complete Lab Kit for testing or as individual components.
Are you an integrator? Or do you want to try our Lab Kit? Contact our team here:
Discover LuxiRing, the next-generation industrial lighting system designed to meet the most demanding requirements of machine vision. Equipped with exclusive LuxiBright® technology, LuxiRing delivers perfectly directional, precise, and uniform illumination. Its unique design eliminates glare and stray light that can interfere with visual inspections, ensuring optimal detection of even the most intricate details of your components.
Unlike traditional LED lighting, LuxiRing is engineered with fewer components for maximum efficiency. Its innovative structure focuses light exactly where it is needed, without dispersion or glare, allowing your industrial cameras to capture images with exceptional sharpness and precision.
Whether you want to explore this technology with the complete Lab Kit or selectively integrate the components best suited to your needs, LuxiRing adapts to all industrial configurations.
Shipping: 2 to 4 weeks. The expected shipping date confirmation will be sent via email.
Additional information

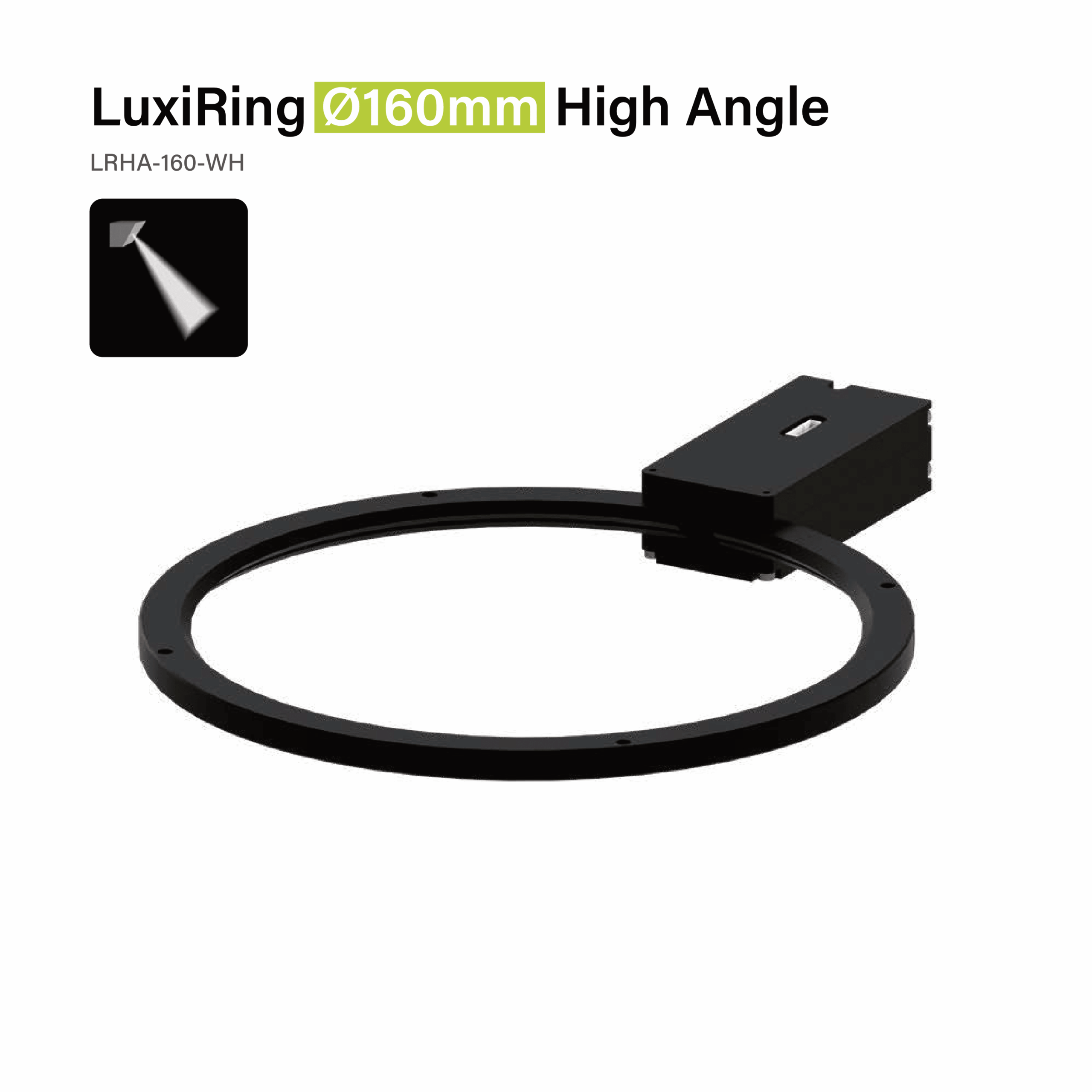

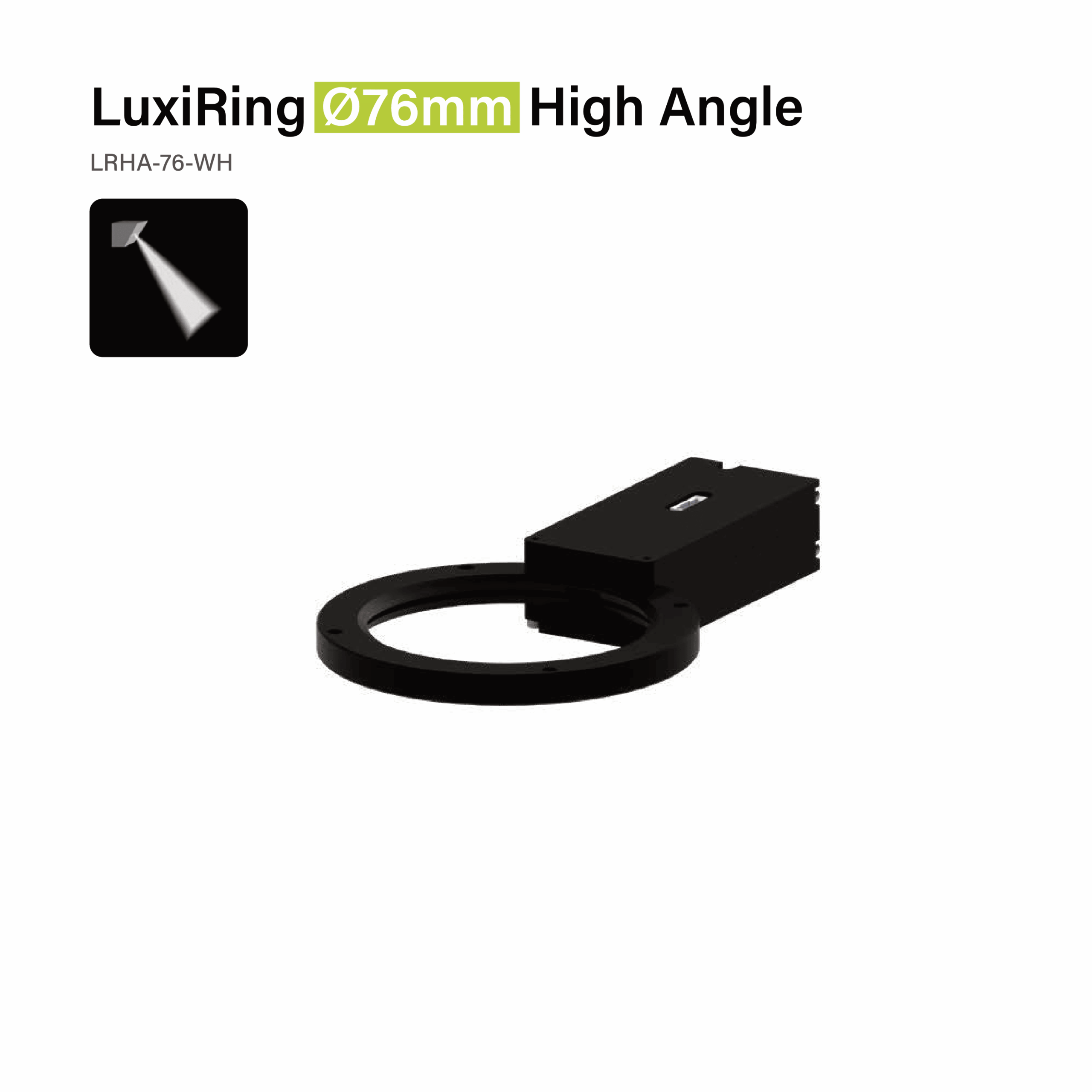

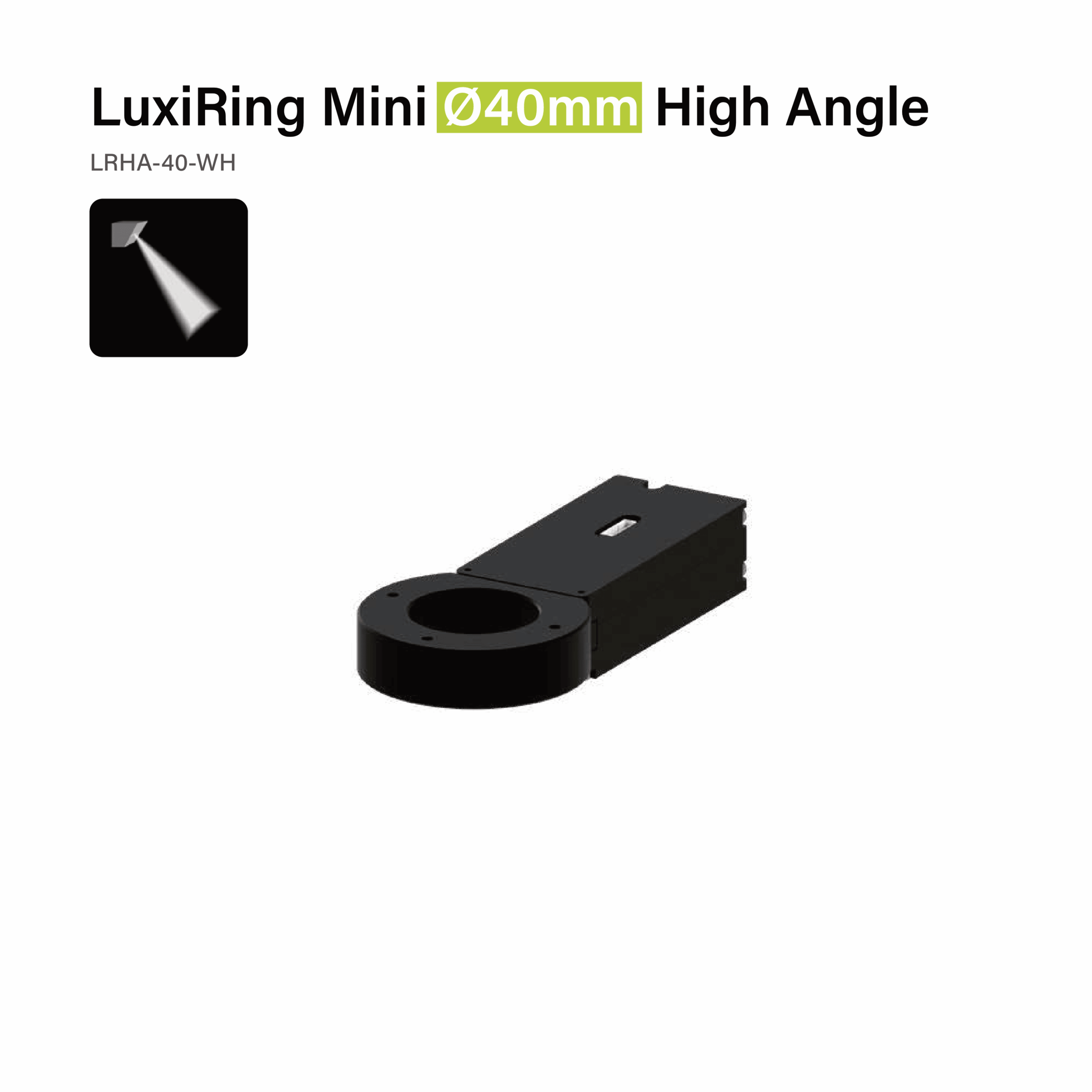

| Radius Ring | Mini 40mm, 76mm High Angle, 76mm Low Angle, 160mm High Angle, 160mm Low Angle, Maxi 420mm |
|---|---|
| Controller | Included |
| Size L.E.S.S. Cable | 1m, 2m |
| Size M12 cable | 1.5m |
| Color temperature | 5400°K |
| Overdrive | x2,5 |
| Stroboscope responsiveness | <10 microseconds |
| Illumination modes | Continuous / Trigger / Strobe |
| Mechanical Interface | DIN Rail Adaptor (TS35) |
| Max. Energy Consumption | 19W (Overdrive), 12W (Nominal) |
| Electrical Interface | 24 VDC / GND / Trig In |
| Frame material | Anodised Aluminium |
| Mounting holes | M4 |
| Operating temperature | 0-40°C |
| IP Protection Index | IP30 |
| Weight | Mini <130g |
| Lighting technology | LuxiBright® |
| Controller Input Voltage | 24 VDC |
| Analog Dimming Control (30%-100%) | 0-10 VDC |
Resources
TECHNICAL DATASHEET
Click here to download the LuxiRing Datasheet file
3D-CAD
To learn more about our product, you can download the 3D-CAD of LuxiRing:
Click here to download the 3D-CAD LuxiRing Mini files
Click here to download the 3D-CAD LuxiRing Ø76 files
Click here to download the 3D-CAD LuxiRing Ø160 files
Click here to download the 3D-CAD LuxiRing Maxi files
Click here to download the 3D-CAD controller files
2D DRAWING
To learn more about our product, you can download the LuxiRing 2D drawings:
Click here to download the LuxiRing Mini 2D drawing files
Click here to download the LuxiRing Ø76 2D drawing files
Click here to download the LuxiRing Ø160 2D drawing files
Click here to download the LuxiRing Maxi 2D drawing files
Click here to download the LuxiRing 2D drawing of the Controller files
USER MANUAL
To learn more about our product, you can download the LuxiRing User Manual:
Click here to download the LuxiRing User Manual files
COMING SOON version 2 of the LuxiRing User Manual
Application Note | Wafer
To learn more about our product, you can download the LuxiRing application note.
LuxiBright
lighting
Our expertise makes all the difference with LuxiBright™, a technology that provides uniform and directional lighting, ensuring optimal precision and unmatched defect detection, regardless of the application field.
LED
Scattered
Diffused
LuxiBright™
Uniform
Directional
